    Home Purlin Roll Forming Machine Size Interchangeable Z Purlin Roll Forming Machine Cr12 Forming Rollers
    • Size Interchangeable Z Purlin Roll Forming Machine Cr12 Forming Rollers

    • This size interchangeable Z purlin roll forming machine is high quality design, all roll forming rollers are made from Cr12 material, This type of material is more harder and won't be rusted.
    • Item No.:Z120-300
      Lead Time:90days
      Product Orgin:China
      Shipping Port:Xiamen, China
      Material Thickness: 1.0-3.0mm
      Covered Width: C: 80~300mm; Z:140~300mm
      Forming Station: 19 Steps
      Driving Motor: 22KW
      Shaft Diameter: 80mm
    • Contact Us
    Detailed description

    Any purlin shapes, any purlin hole styles  roll forming machines are acceptable for customized manufacture


    Product Name: Size Interchangeable Z Purlin Roll Forming Machine Cr12 Forming Rollers


    Machine Details

    Our full automatic Size Interchangeable Z Purlin Roll Forming Machine has matched with hex nuts, and with special hexagon spanner,  it is more convenient for adjusting different material width.

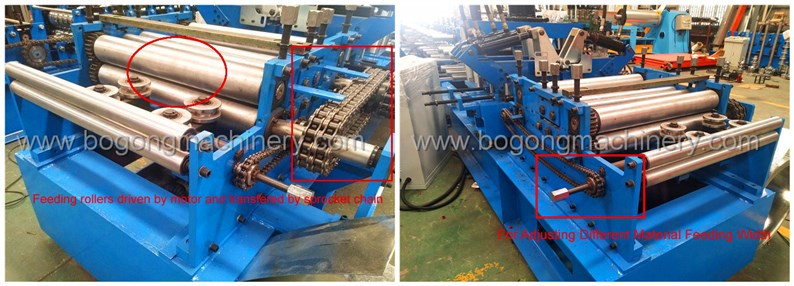

    Considering the purlin raw material thickness is bigger, not good feed material head into  purlin roll forming machines by manual, we designed the feeding rollers are driven by main motor and transported by sprocket chain, it can save human power when producing.

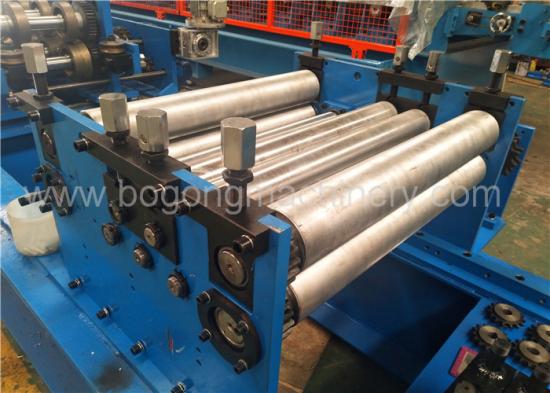

    The straightening rollers for this Size Interchangeable Z Purlin Roll Forming Machine are total nine piece, and the straightening rollers diameter is 90mm, more bigger rollers more better straightening effective.

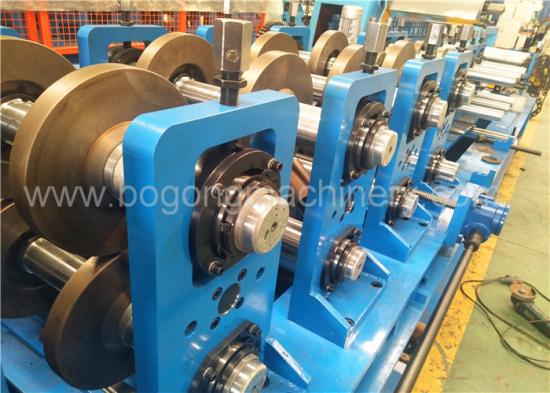

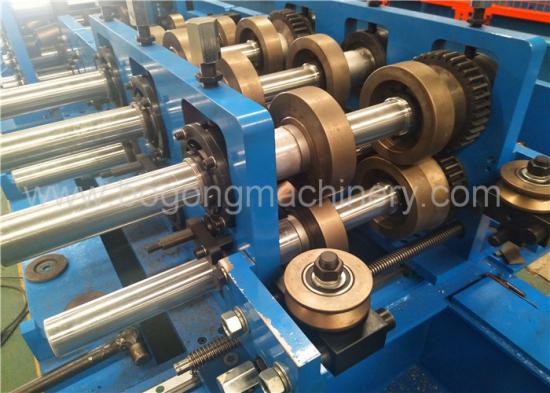

    See the forming rollers, all are made from Cr12 material, this type of roller material is much more harder, it is good for roll forming hard high tension grade steel coil, then the power is bigger enough.


    This Size Interchangeable Z Purlin Roll Forming Machine  is interchangeable type, the Z purlin size can be from 120mm to 300mm, one machine side is fixed and the other size is movable for producing different purlin sizes.

    There are three portable electric buttons to control the three machine fame moving, for operation these buttons, we can adjust the machine to produce Z purlin size you need.  The operator also can change purlin size on PLC control system, after you set the size what you want, start the machine, it can move to correct position for the size you are prefer to, this is the full automatic Size Interchangeable Z Purlin Roll Forming Machine.


    Profile Design Drawing
    Suitable material: Zinc coated coil,Galvanized steel coil, Material thickness: 1-3mm, 2.5mm for inspection (common used), material Yield: above Q550Mpa.




    Technical Parameter

    Parameters Specification
    Voltage 380V/50HZ/3PH
    Driving Motor 22KW
    Hydraulic Cuting Motor 7.5KW
    Motor For Width Adjust 0.75KW*3
    Forming Steps 18
    Working Speed 15-20m/min
    Thickness for Steel 1.0-3.0mm (Material:PPGI,GI Steel G550)
    Shaft Diameter 80mm
    Shaft Material High grade 45# forged steel
    Roller Material Gr15 steel with polished and heat treatment
    PLC Cabinet Schneider, Delta
    Encoder Omron
    Sprocket Wheel 45 steel high-frequencies quench
    Cut-off System Post punching post cutting
    Cutting Blade Material Cr12 steel
    Machine Frame Material Fine welded structural steel;
    Roofing Material PPGI, GI steel G330-550
    Painted Color Blue+Gray White Or Customization
    Overall Size 9000*1400*1800mm
    Weight 9500KGS

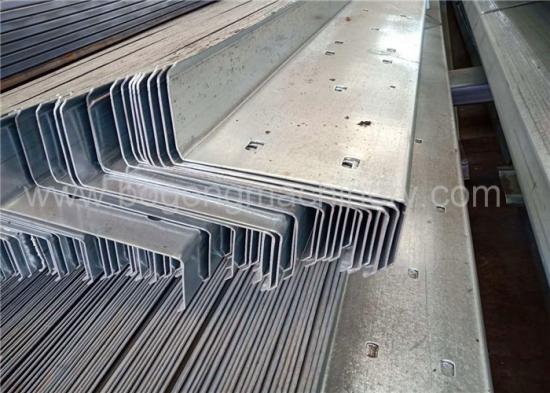

    Purlin Samples

    The hole shapes and dimensions can be customized design according to user's requirements.
