    • High Speed Auto Change Purlin Roll Forming Machine With Universal Cutter

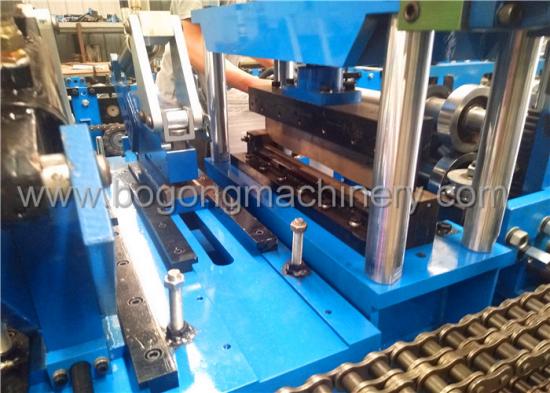

    • This High Speed Auto Change Purlin Roll Forming Machine is with universal cutter, we needn't change cutting blades again after changing to produce other size purlins.
    • Item No.:C80-300/Z120-300
      Lead Time:90days
      Product Orgin:China
      Shipping Port:Xiamen, China
      Material Thickness: 1.0-3.0mm
      Covered Width: C: 80~300mm; Z:140~300mm
      Forming Station: 19 Steps
      Driving Motor: 18.5KW
      Shaft Diameter: 80mm
    • Contact Us
    Detailed description

    Customized design and manufacture all kinds of purlin shapes and custom design purlin hole styles


    Product Name: High Speed Auto Change Purlin Roll Forming Machine With Universal Cutter

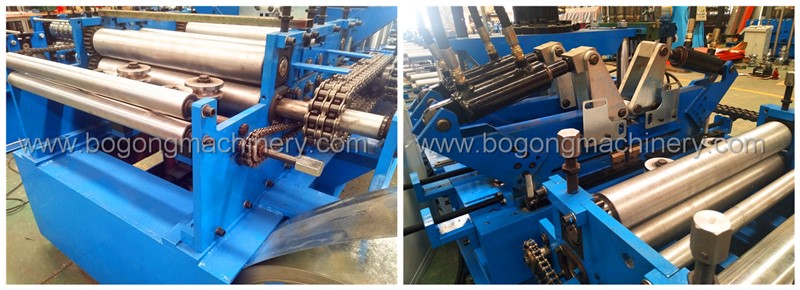

    Our full automatic High Speed Auto Change Purlin Roll Forming Machine With Universal Cutter has matched hex nuts, with special hexagon spanner,  it is more convenient for adjusting different material width. Considering the purlin raw material thickness is bigger, not good feed material head into  purlin roll forming machines by manual, we designed the feeding rollers are driven by main motor and transported by sprocket chain, it can save human power when producing.

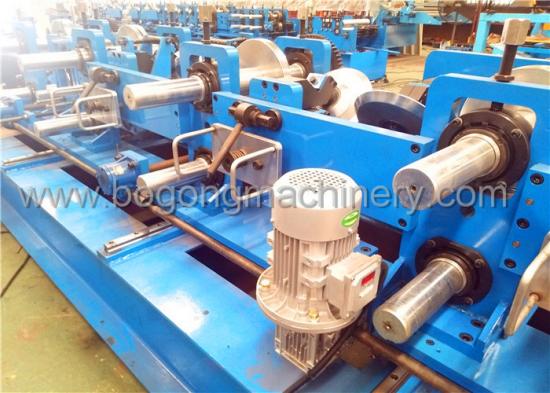

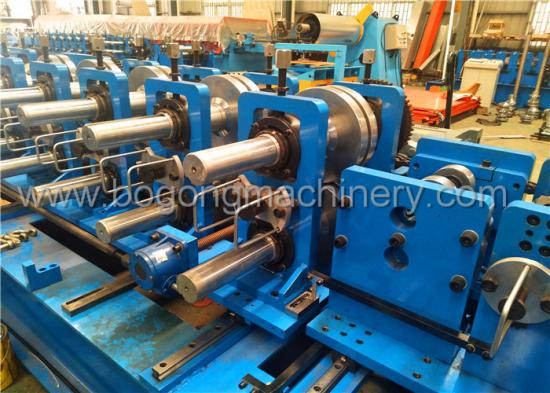

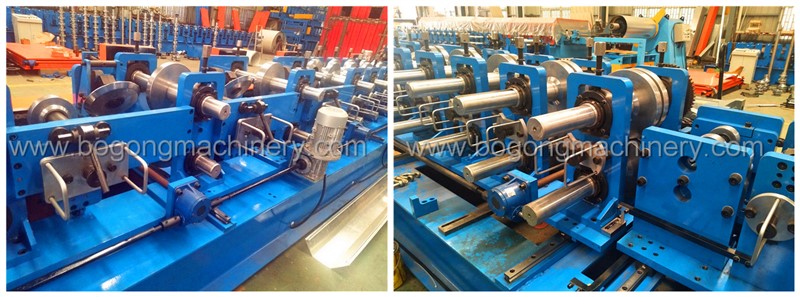

    This purlin roll forming machine is size interchangeable, can produce both c and z sections, see below mark out cassette, it is used for exchanging C and Z type, when the roll forming machine produce C purlin roll forming machine at first, after first c purlin producing task, we need to operate these six cassette: pull out and rotate them 180 degree, next, whole roll forming line can start to roll forming z purlin producing task. Easy operation. The servo motor on right picture is for changing purlin size.

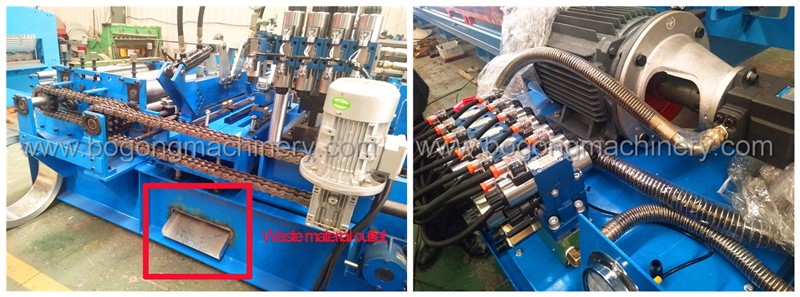

    This High Speed Auto Change Purlin Roll Forming Machine With Universal Cutter is pre-punch pre-cut type, we have made one waste material collector under punching and cutting section, it is for collecting punching hole waste material to outside.

    All hydraulic pipes are together with screw casing, it is for keeping hydraulic pipes safe and can be used more long time.

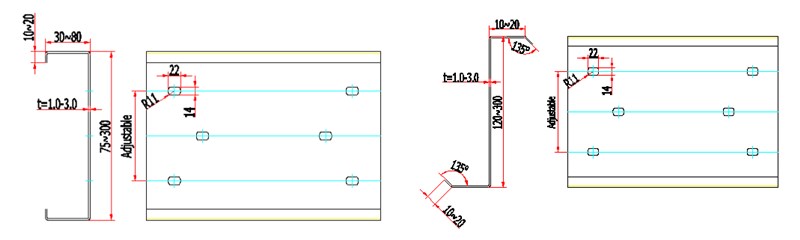

    Profile Design Drawing
    Suitable material: Zinc coated coil,Galvanized steel coil, Material thickness: 1-3mm, 2.5mm for inspection (common used), material Yield<=Q345Mpa.



    Technical Parameter

    Parameters Specification
    Voltage 380V/50HZ/3PH
    Driving Motor 18.5KW
    Hydraulic Cuting Motor 5.5KW
    Motor For Width Adjust 0.75KW*3
    Forming Steps 18
    Working Speed 15-20m/min
    Thickness for Steel 1.0-3.0mm (Material:PPGI,GI Steel G550)
    Shaft Diameter 80mm
    Shaft Material High grade 45# forged steel
    Roller Material Gr15 steel with polished and heat treatment
    PLC Cabinet Schneider, Delta
    Encoder Omron
    Sprocket Wheel 45 steel high-frequencies quench
    Cut-off System Post punching post cutting
    Cutting Blade Material Cr12 steel
    Machine Frame Material Fine welded structural steel;
    Roofing Material PPGI, GI steel G330-550
    Painted Color Blue+Gray White Or Customization
    Overall Size 9000*1400*1800mm
    Weight 9500KGS
