    • This U channel roll forming machine is used for door rail, but it U shape design, so we also can call it door rail roll forming machine or U purlin roll forming machine, it can produce total five sizes U purlin.
    • Lead Time:60-80days
      Product Orgin:China
      Shipping Port:Xiamen Port
      Material Thickness: 1.0-1.5mm
      Forming Station: 20 Steps
      Driving Motor: 11KW*2
      Shaft Diameter: 75mm
      Cutting Blade Material: Cr12
      Cutting Type: Waste Material
    • Contact Us
    Detailed description

    Customized kinds of C Z purlin roll forming machine, U channel roll forming machine, door rail machine and door guider roll forming machines


    Product name: Door Frame Used U Channel Roll Forming Machine


    Machine Details

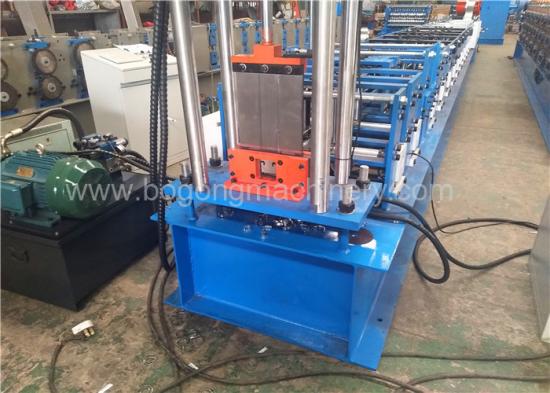

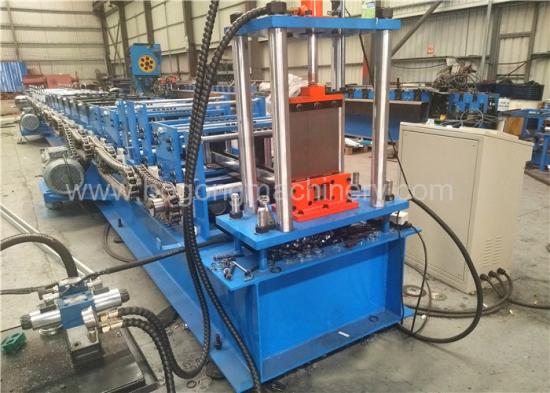

    On this Door frame Used U channel roll forming machine, there are two steel coil material guiders, first one is at the machine's beginning end after feeding rollers, this guider is for guiding steel coil into straightening device. The second guider is before material goes inside forming rollers, it is for ensure metal strip is at correct forming position for U shape.

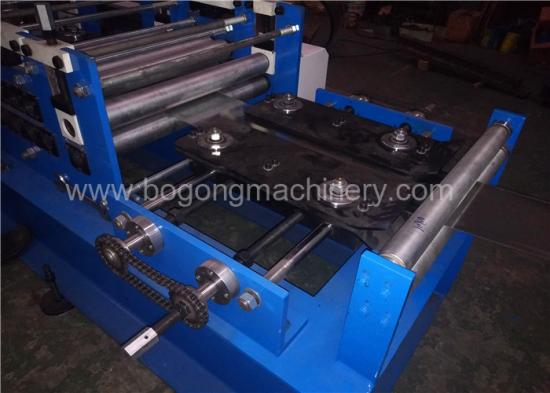

    The feeding rollers has been designed for leading steel coil material into U purlin roll forming machines, it can keep material go into roll forming machine more smoothly. Next is the straightening roller group, the raw material should be straightened before roll forming into U purlins, it can ensure the purlin each position is more flat and the final purlin production shapes are more beautiful.

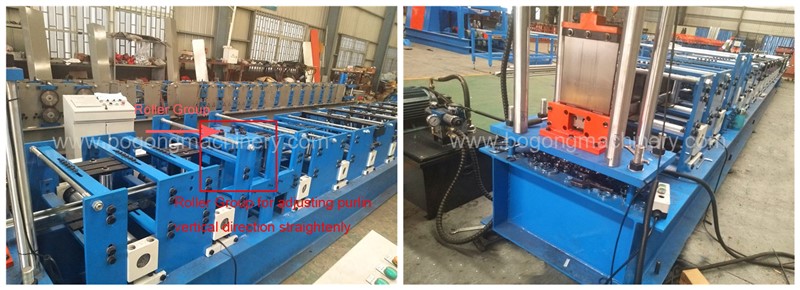

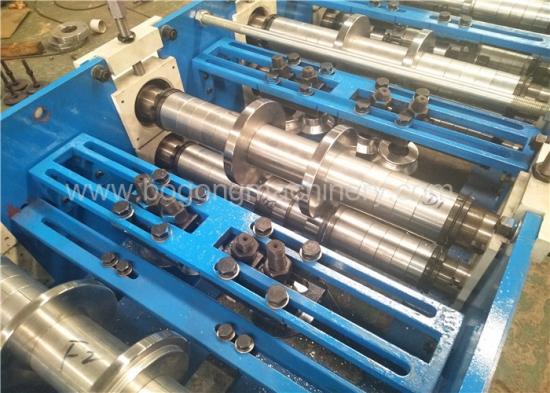

    This Door frame Used U channel roll forming machine can totally produce five sizes of u channel, there are U65*60, U65*90, U65*120, U65*150, U65*210, the bottom dimension is fixed as 65mm, but the waist dimensions are changeable from 60mm to 210mm. So see the roller group i have marked as below, this group is for adjusting U65*150 and U65*210 waist vertical direction straightened effect. Also, there total need fives sets cutting blades, one size need one sets cutting blades. But the upper cutting blades is only one design, we needn't change this upper cutting blades after we changing producing size, only need to change bottom cutting blades.

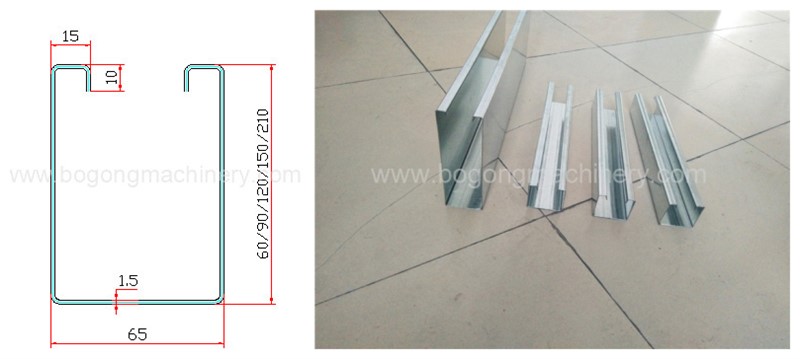

    Profile Design Drawing

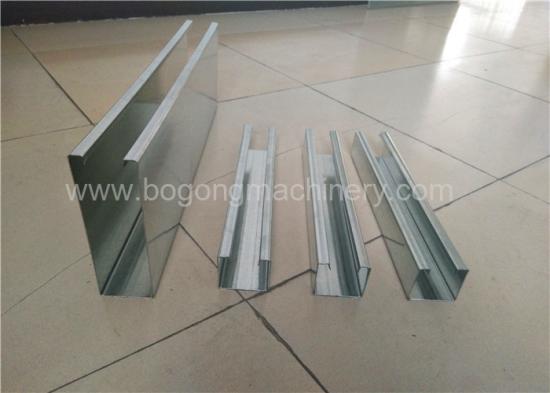

    This U channel roll forming machine can total produce five sizes as U65*60, U65*90, U65*120, U65*150, U65*210, suit for 1.0-1.5mm material thickness.



    Technical Parameters



    Parameters Specification
    Voltage 380V/50HZ/3PH or customized
    Driving Motor 11KW*2
    Hydraulic Motor 7.5KW
    Forming Steps 20 steps
    Working Speed 10-15m/min
    Thickness for Steel 1.0-1.5mm
    Shaft Diameter 75mm
    Shaft Material High grade 45# forged steel
    Roller Material G45# steel, CNC lathe,polished and chrome plated
    PLC Cabinet Schneider, Delta
    Encoder Omron
    Sprocket Wheel 45 steel high-frequency quench
    Cut-off System Post cutting, three pieces of cutting blades
    Cutting Blade Material Cr12 steel
    Machine Frame Material Fine welded structural steel;
    Raw Material Galvanized steel
    Painted Color Blue+Orange Or Customization
    Overall Size 13500*950*1050mm
    Weight 12000KGS
