Product Name: Non-Stop Cutting Glazed Roof Tile Roll Forming Machine High Speed Design

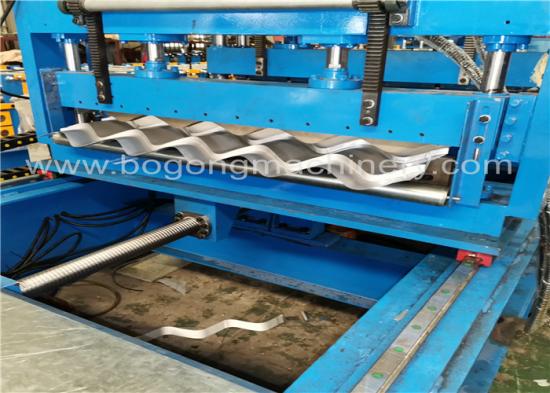

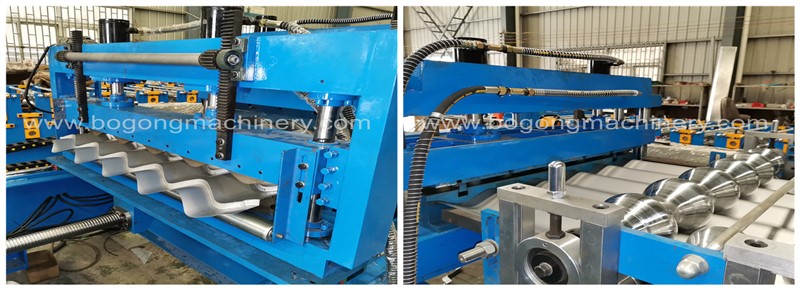

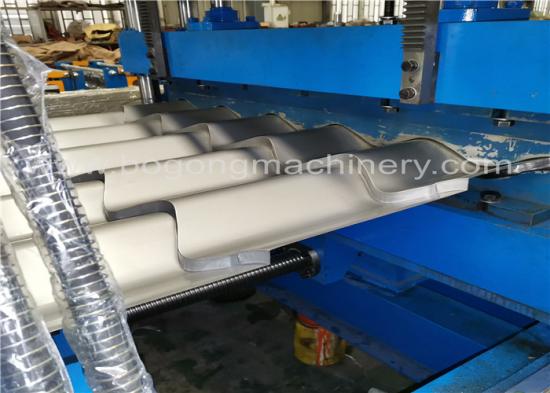

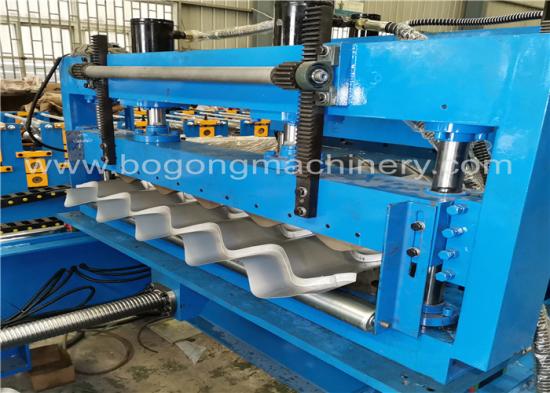

This non-stop cutting glazed tile roll forming machine is high speed type, there is running guider rail for pressing tile section and cutting off section at the end of machines. After finished roll forming roof sheet, the roof sheet will go inside the tile pressing mold and cutting section, and cutting section is running on the guider rail then working at the same time. To do this work can improve the whole glazed tile roll forming machine line speed reach at about 5-6m/min

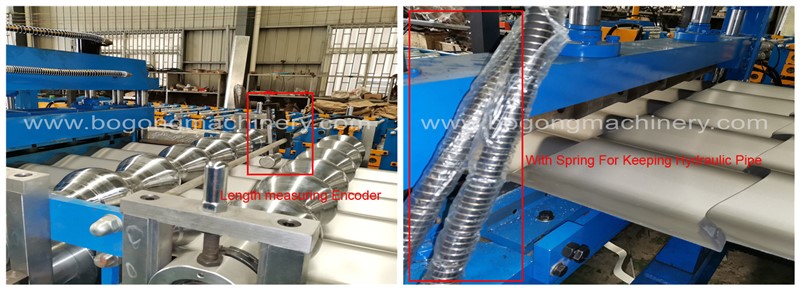

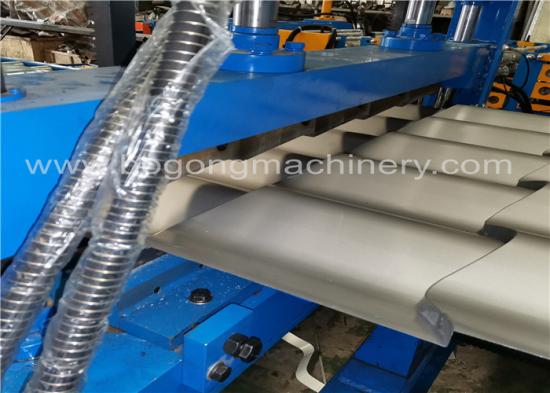

For measuring the running speed, tile length, cutting length, we have installed encoder sensor on this non-stop cutting glazed tile roll forming machine, in order to keep the length precision, the encoder should touch the roof sheet surface well.  All the hydraulic pipes are wore by spring sleeve, it is for keeping the pipe won't be easy broken.

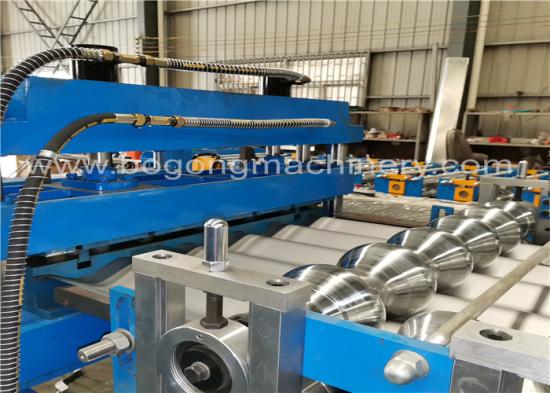

Hydraulic cutting and pressing system at whole glazed tile roll forming machine finished end. Each station pressing screws are with nuts and caps. It can ensure the screws won't go up after roll forming several batch of tile roofs, and the machine operators need't lock the screws often.

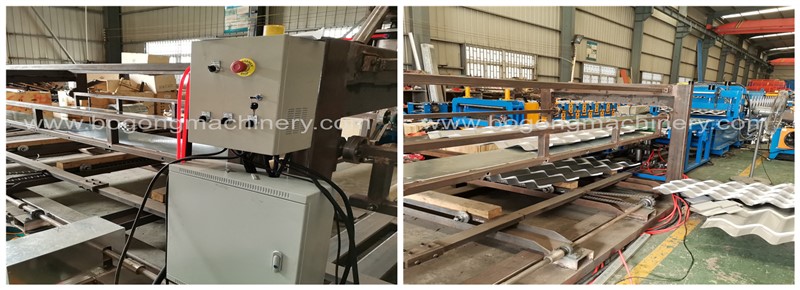

This non-stop cutting glazed tile roll forming machine is the full automatic producing line for our user, all working actions are controlled by its own electric control box From hydraulic uncoiler to feeding material to product stacker, the product stacker is pneumatic driving, auto falling down to bottom layers and auto push product out after reached requirement pieces of roof samples.

Technical Parameters

Contact to us if you need more information about our roll forming machines.
