    Roof Tile Roll Forming Machine

    Home Roof Tile Roll Forming Machine Glazed Sheet Metal Roof Tile Roll Forming Machine 1220mm Feeding Width
    • Glazed Sheet Metal Roof Tile Roll Forming Machine 1220mm Feeding Width

    • Glazed Sheet Metal Roof Tile Roll Forming Machine 1220mm Feeding Width is the customized design for Africa market, 1220mm feeding width with 815mm covered width. It suit for galvanized sheet and PPGI steel coil.
    • Product Orgin:China
      Shipping Port:Xiamen, China
      Material Thickness: 0.4-0.6mm
      Material Width: 1220mm
      Covered Width: 815mm
      Forming Station: 16 Station
      Driving Motor: 7.5KW
      Shaft Diameter: 75mm
    • Contact Us
    Detailed description

    Custom design and manufacture kinds of pre-engineer building used roll forming machines


    Product Name: Glazed Sheet Metal Roof Tile Roll Forming Machine 1220mm Feeding Width


    This glazed sheet metal roof tile roll forming machine is designed for producing both aluminum-zinc coated steel and pre-painted steel sheet coil, all the rollers are CNC lathe, polished and then coated by hard Chrome, this is for increasing roller's hardness and anti rollers rust. It is good for ensure step tile roof surface is smooth and beautiful.

    The glazed sheet metal roof tile roll forming machinline is controlled by PLC system, see the encoder to inspect whole line's working speed and it can give length signal to PLC system, then all the step tile length and steel tile roof length  will be on correct dimension.

    steel sheet roof tile roll forming machine

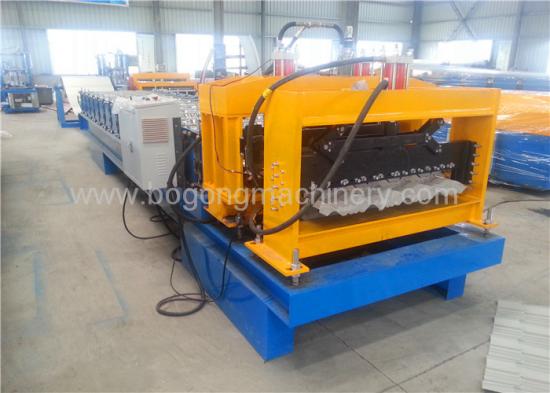

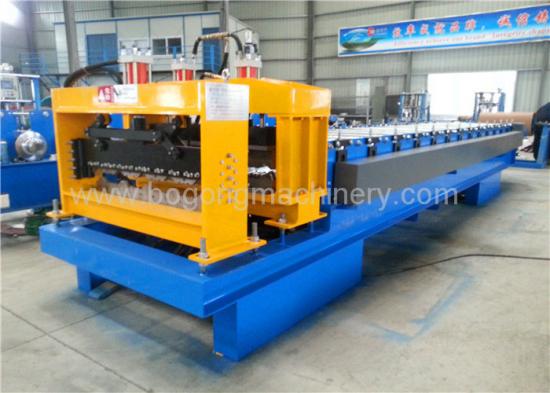

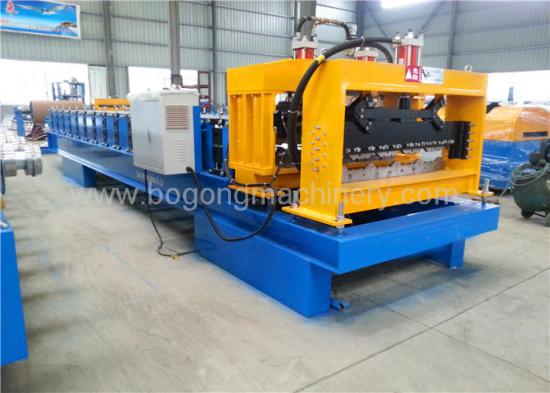

    Hydraulic cutting and pressing system at whole glazed sheet metal roof tile roll forming machine finished end, the cutting end is good and nothing burrs happen.

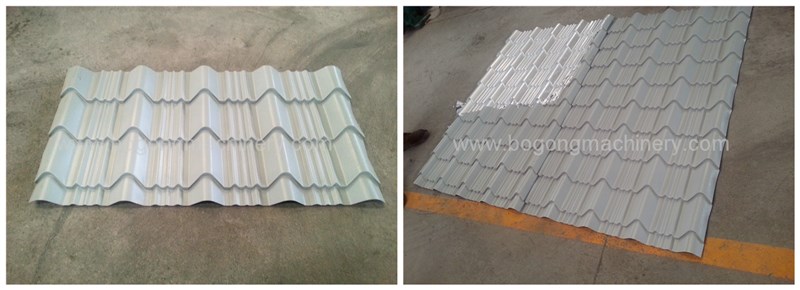

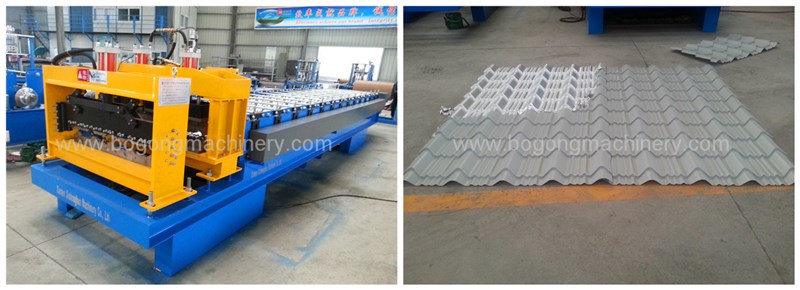

    Sample Pictures

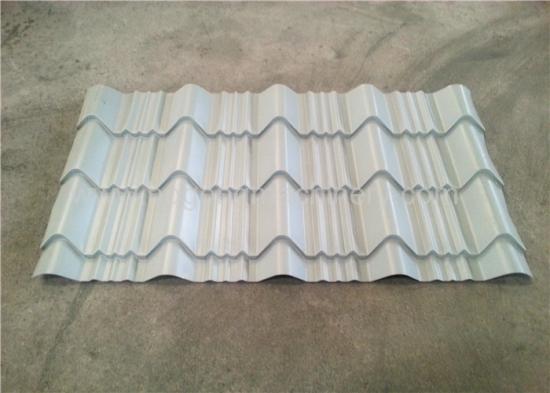

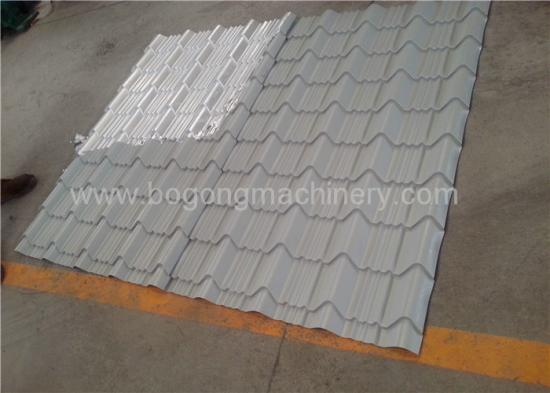

    This glazed sheet metal roof tile roll forming machine  design is with four pinches, 815mm covered width and the raw material width is 1220mm. Whole roof tile surface is smooth and the two connect edges are flat also.




    Technical Parameters

    Parameters

    Specification

    Voltage

    380V/50HZ/3PH/or customized

    Driving Motor

    7.5KW

    Forming Steps

    16 steps

    Working Speed

    3-5m/min

    Thickness for Steel

    0.4-0.6mm (Material:PPGI,GI Steel G550)

    Shaft Diameter

    75mm

    Shaft Material

    High grade 45# forged steel

    Roller Material

    G45# steel, CNC lathe,polished and chrome plated

    PLC Cabinet

    Schneider, Delta

    Encoder

    Omron

    Sprocket Wheel

    45 steel high-frequencies quench

    Cut-off System

    Post cutting, no waste cutting

    Cutting Blade Material

    Cr12 steel

    Machine Frame Material

    Fine welded structural steel;

    Roofing Material

    PPGI, GI steel G330-550

    Painted Color

    Blue+Orange Or Customization

    Overall Size

    9600*1550*1650mm

    Weight

    7500KGS


    Contact to us if you need more information about our roll forming machines.
