Customized different kinds of roll forming machines for aluminum sheet, color steel sheet, galvanized sheet and aluminum zinc coated steel coil, all these machine can be used as tile roof, floor deck, metal roof, shutter door, high way guard rail, door frame and other application.

Product Name: Corrugated Metal Roofing Tile Roll Forming Machine For Color Sheet

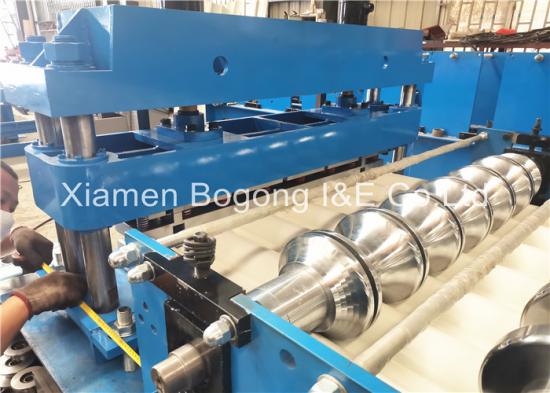

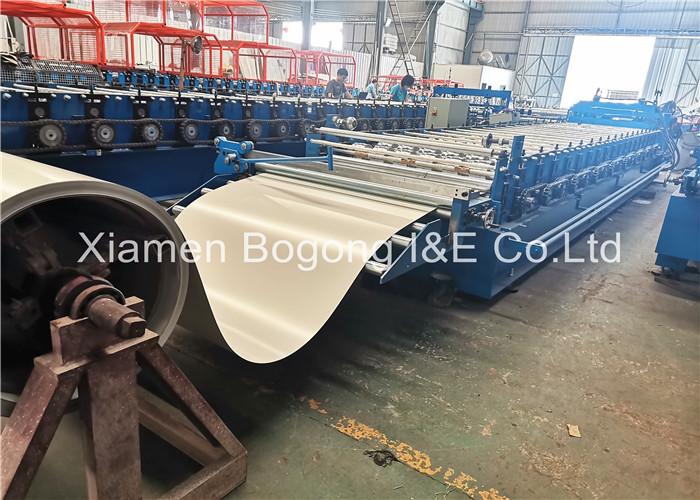

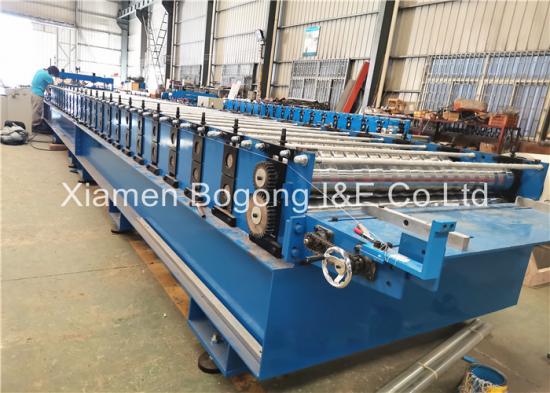

High Quality High Speed Corrugated Metal Roofing Tile Sheet Roll Forming Machine is the special equipment for continuous rolling and cold-forming on steel sheet. It adopts coiling steel sheet as the raw material, recoiling, continuous rolling and cold-forming, automatically cut to the size and specification which is required, and output the finished panels. The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for steel structure.

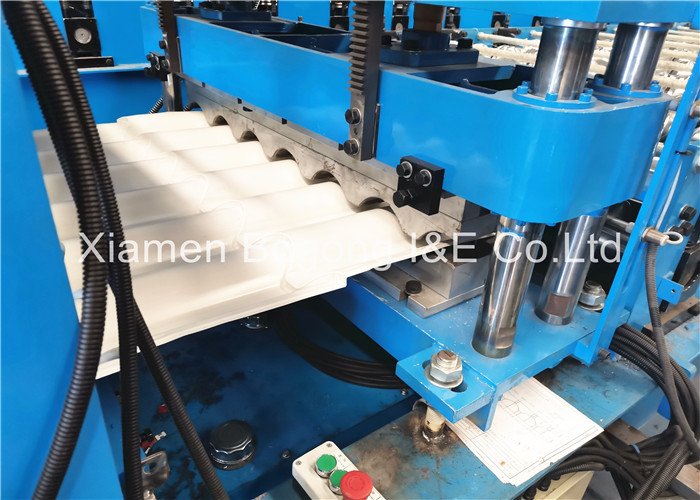

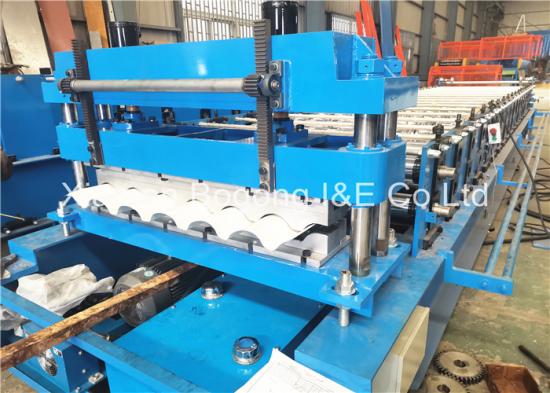

Whole Corrugated Metal Roofing Tile Sheet Roll Forming Machine line choose hydraulic pressing/cutting device, the cutting blades are made from Cr12 material, and the device is driven by pump motor, all the actions controlled by PLC control system.

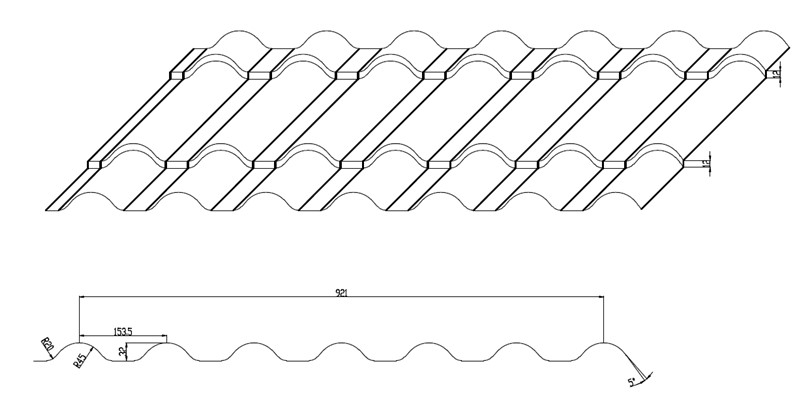

Below is the roof tile design drawing for this corrugated Roofing Tile sheet Roll Forming Machine,  the raw material will be aluminum sheet in 1250mm width, the suitable material thickness is 0.4-0.6mm, six waves and the max tile depth is 15mm.

Technical Parameters
