    Custom Roll Forming Machine

    Home Custom Roll Forming Machine Metal Guard Fence Roll Forming Machine 828mm Covered Width
    • Metal Guard Fence Roll Forming Machine 828mm Covered Width

    • This Metal Guard Fence Roll Forming Machine is for roll forming the panel used as safety guard fence for road, building site and other necessary used place, the feeding material is adjustable for 1000mm, 1220mm and 1250mm, and the max. covered width can be 828mm.
    • Item No.:YX27-59-651/828
      Lead Time:40-80days
      Product Orgin:China
      Shipping Port:Xiamen, China
      Material Thickness: 0.4-0.7mm
      Material Width: 1250mm
      Covered Width: 828mm
      Forming Station: 20
      Driving Motor: 7.5
      Shaft Diameter: 75mm
      Roller Material: 45# Steel, Coated By Chrome
      Cutting Blade Material: Cr12

    • Contact Us
    Detailed description

    Professional customized design/manufacture kinds of roll forming machines


    Product Name: Metal Guard Fence Roll Forming Machine 828mm Covered Width

    Machine Details

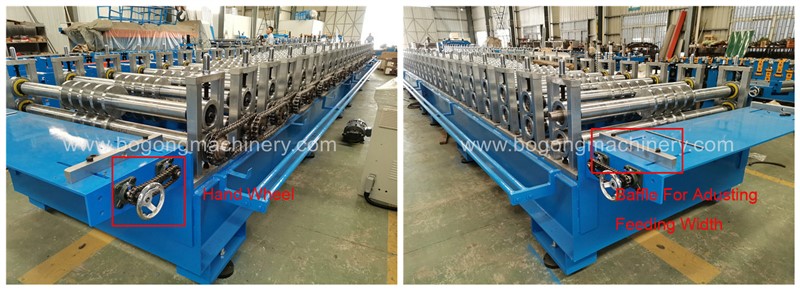

    At the beginning of metal guard fence roll forming machine, we have installed hand wheel at feeding table aside for suiting all three feeding width, operating worker only need to roll this hand wheel at clock direction or reverse clock direction after loosing the fixed screws at baffle. There are two pieces of baffles on feeding table, we can adjust this baffle to right side or left side a little for different kinds of material width.

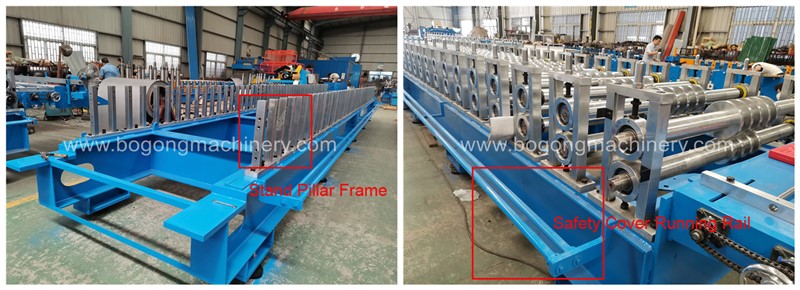

    This metal guard fence roll forming machine adopts stand pillar machine frame type,  compare to traditional machine frame,  it is good  for user to maintenance whole roll forming machines, we can add lubricated oil any time, no need remove the gear cover again. Whole metal fence sheet roll forming machine with stand pillar machine frame looks more beautiful.

    This metal guard fence roll forming machine is with safety protection covers, see the running rail  at two machine sides, all our safety cover are mesh type and can be moved on the rail.



    Technical Parameters

    Parameters

    Specification

    Voltage

    380V/50HZ/3PH/or customized

    Driving Motor

    7.5KW

    Forming Steps

     20 steps

    Working Speed

    15-20m/min

    Thickness for Steel

    0.4-0.7mm (Material:PPGI,GI Steel G550)

    Shaft Diameter

    75mm

    Shaft Material

    High grade 45# forged steel

    Roller Material

    G45# steel, CNC lathe,polished and chrome plated

    PLC Cabinet

    Schneider, Delta

    Encoder

    Omron

    Sprocket Wheel

    45 steel high-frequencies quench

    Cut-off System

    Post cutting, no waste cutting

    Cutting Blade Material

    Cr12 steel

    Machine Frame Material

    Fine welded structural steel;

    Roofing Material

    PPGI, GI steel G330-550

    Painted Color

    Blue+Orange Or Customization

    Overall Size

    9400*1450*1650mm

    Weight

    6000KGS

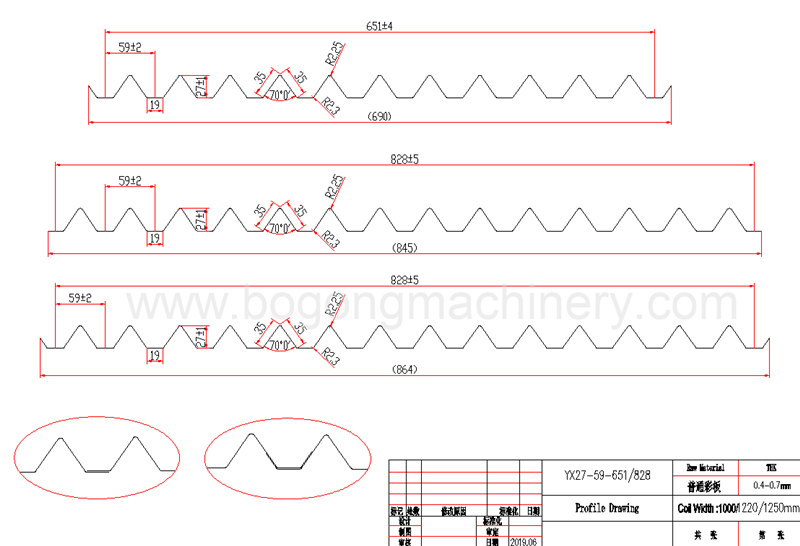

    Profile Design Drawing

    The raw material width for this roofing sheet is 1000/1220/1250mm, and the working thickness is from 0.4mm- 0.7mm, and the covered width are 651/828/828mm.
