    Shutter Door Roll Forming Machine

    Home Shutter Door Roll Forming Machine Customize Pre-Painted Steel Door Guider Roll Forming Machine
    • Customize Pre-Painted Steel Door Guider Roll Forming Machine

    • This roll forming machine is for producing galvanized steel door guider, we can customize manufacture for final user. The steel door guider roll formed by galvanized steel door guider roll forming machine should be straight enough, this can keep roller shutter doors can move smoothly inside this guider.
    • Product Orgin:China
      Shipping Port:Xiamen, China
      Material Thickness: 0.6-1.0mm
      Material Width: 405mm
      Forming Station: 22
      Driving Motor: 11KW
      Shaft Diameter: 75mm
      Cutting Blade Material: Cr12
      Cutting Type: No Blanking
      Encoder Brand: Omron
    • Contact Us
    Detailed description

    Customize any kinds of steel door, shutter door roll forming machines


    Product name: Customize Pre-painted Steel Door Guider Roll Forming Machine

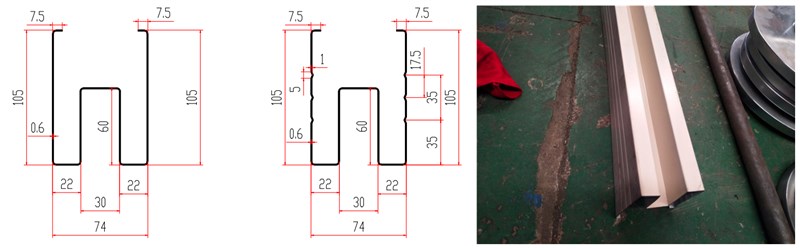

    Profile Design Drawing

    This pre-painted steel door guider roll forming machine can roll forming below design with or without strengthen rib door guiders, the raw material can be stainless steel sheet, pre-painted  sheet and galvanized sheet, and suit for 0.6-1.0mm thickness.



    Main Machine Details

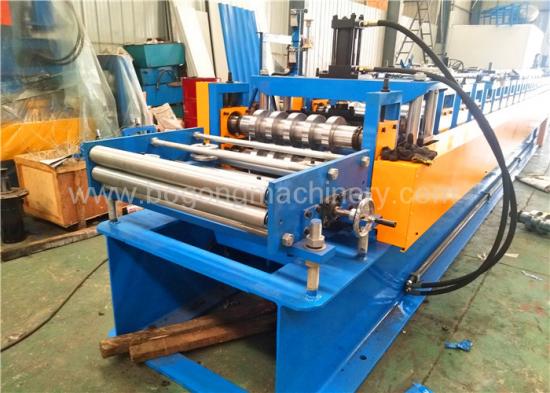

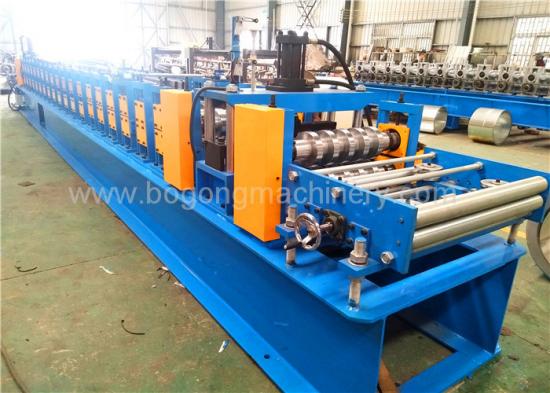

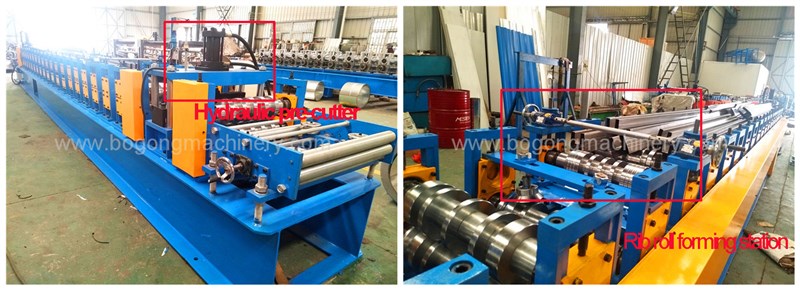

     After feeding table and straightening rollers, there is  hydraulic pre-cutter, because this producing line is for roll forming 0.6-1.0mm raw material thickness, if we choose manual pre-cutter, the power is too strong for workers, hydraulic type of more better for this  Pre-painted Steel Door Guider Roll Forming Machine line.

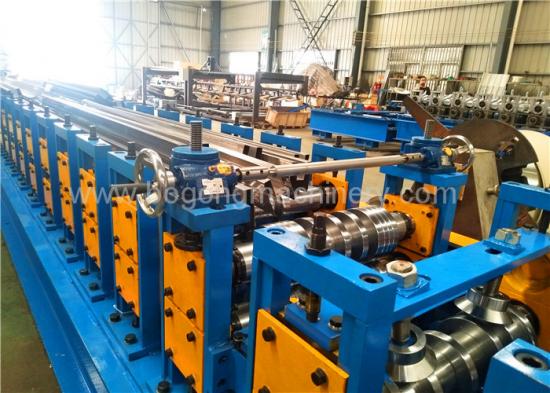

    After hydraulic pre-cutter device, it is the rib roll forming station, if the door guider needs ribs, we can adjust the upper rollers down a little by operating the hand wheel, or adjust the upper roller up to stop forming ribs. This is option working station for whole metal door guider equipment.

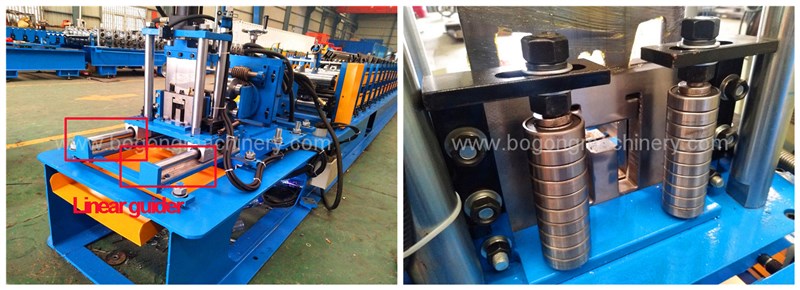

    There is running guider on this Pre-painted Steel Door Guider Roll Forming Machine, it is linear guider, whole cutting section can be moved if any resistance power happen. See the cutting blades inner edge, inside machine end is wider than outside end,  this is the special design of ours to solve door guider sample block inside cutting section.

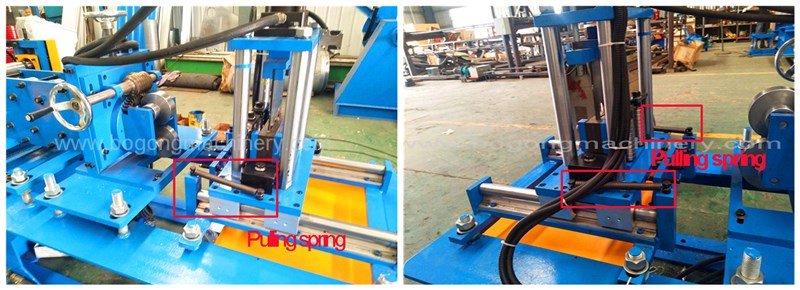

    When the whole galvanized steel door gutter roll forming machine is running quickly, we should ensure the cutting section is safe, won't fall down from machine frames, we add pulling spring to tight it into whole machine body.



    Technical Parameters

    Parameters

    Specification

    Voltage

    380V/50HZ/3PH or customized

    Driving Motor

    11KW

    Forming Steps

     22steps

    Working Speed

    10-15m/min

    Thickness for Steel

    0.6-1.0mm

    Shaft Diameter

    75mm

    Shaft Material

    High grade 45# forged steel

    Roller Material

    G45# steel, CNC lathe,polished and chrome plated

    PLC Cabinet

    Schneider, Delta

    Encoder

    Omron

    Sprocket Wheel

    45 steel high-frequencies quench

    Cut-off System

    Post cutting, no waste cutting

    Cutting Blade Material

    Cr12 steel

    Machine Frame Material

    Fine welded structural steel;

    Raw Material

     GI steel G330-550

    Painted Color

    Blue+Orange Or Customization

    Overall Size

    11000*950*1450mm

    Weight

    8000KGS


    Need More information? Contact with us soon.
