    Double Layer Roll Forming Machine

    Home Double Layer Roll Forming Machine Automatic Double Deck Wall Roofing Ceiling Roll Forming Machine
    • Automatic Double Deck Wall Roofing Ceiling Roll Forming Machine

    • We have more than 15 years on manufacture customizable roll forming machine.
    • Contact Us
    Detailed description

    Automatic Double Deck Wall Roofing Ceiling Roll Forming Machine


    Technical Parameter


    Machine Component Specification
    5Tons Manual Deocoiler Coil Inner-diameter=510±30mm. Coil Outer-diameter Max. 1300mm;
    Taper wedge expanding system
    Load Capacity: Max. 5 Tons; Coil Width Max. 1250mm;

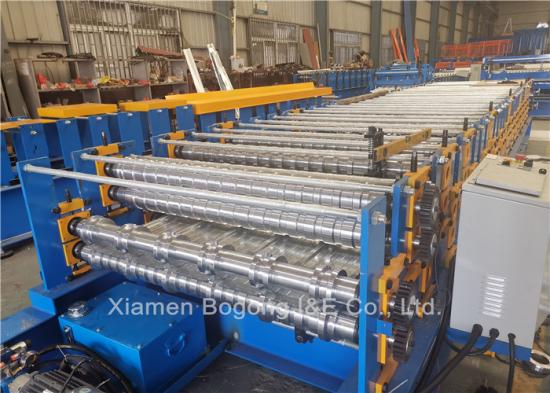

    Roll Forming Machine Station: up layer 15 stations, bottom layer 16 stations
    Rollers manufactured from 45# steel, CNC lathes, hard Chrome Coated, fine polished.
    Shafts Diameter=ф75mm, Precision Machined, fine Polished
    Main motor =5.5KW, Frequency speed control
    Max Line speed of roll Former: Approx. 15m/min
    Hydraulic Cutting Device Stop to cut, Post cut, no waste cutting
    Cutting tool material: Cr12, Heat treatment
    Hydraulic unit, Pump motor =3KW
    PLC Control System Control the quantity & cutting length automatically
    Combined with: PLC (Siemens), Touch Screen (Siemens), Encoder (Omron), etc
    Cut-to-length tolerance≤±2mm
    24V Control voltage
    Product Rack Un-powered, 3 units

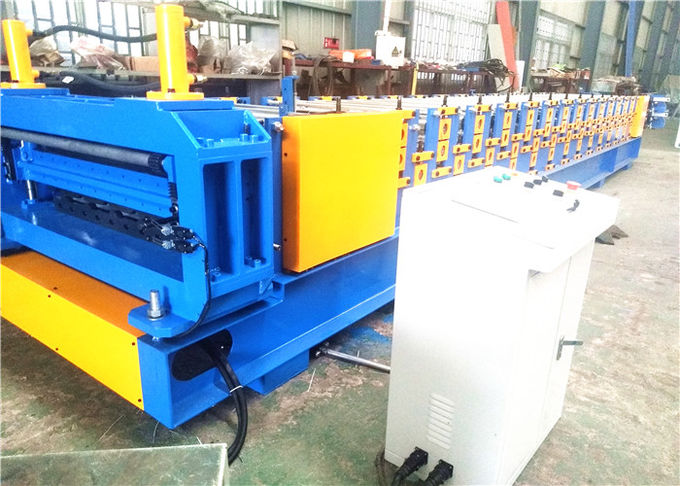

    This is one set of automatic double deck metal wall sheet roll forming machine, the hydraulic station has been installed inside of machine frame.

    At the feeding end of whole roll forming machine, there are manual pull pre-cutter for cutting steel coil head if neccessary. Hand wheels have been matched with feeding table also, it is more convenient for adjusting feeding guider suit to different sizes of steel coil width.


    Our all metal roofing roll forming machines are controlled by PLC system, the producing length, quantity can be set on touch screen. the producing line can produce corresponding task according to the order you set in its PLC system.Producing speed is adjustable also, there frequency inverter inside PLC constrol box for adjusting.




    Need more information of our other roll forming machines, feel free to contact with us soon.
